VCT HD Failsafe - CCB Assembly
| 5335448-2 | |
| 5123185 5129998-2 5335448 | |
| PET/CT | |
| GE HealthCare | |
Add to Wish List
Login To Shop
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Hazardous materials are not used
- Good tensile strength
- High ductility
- High strength
Product Overview

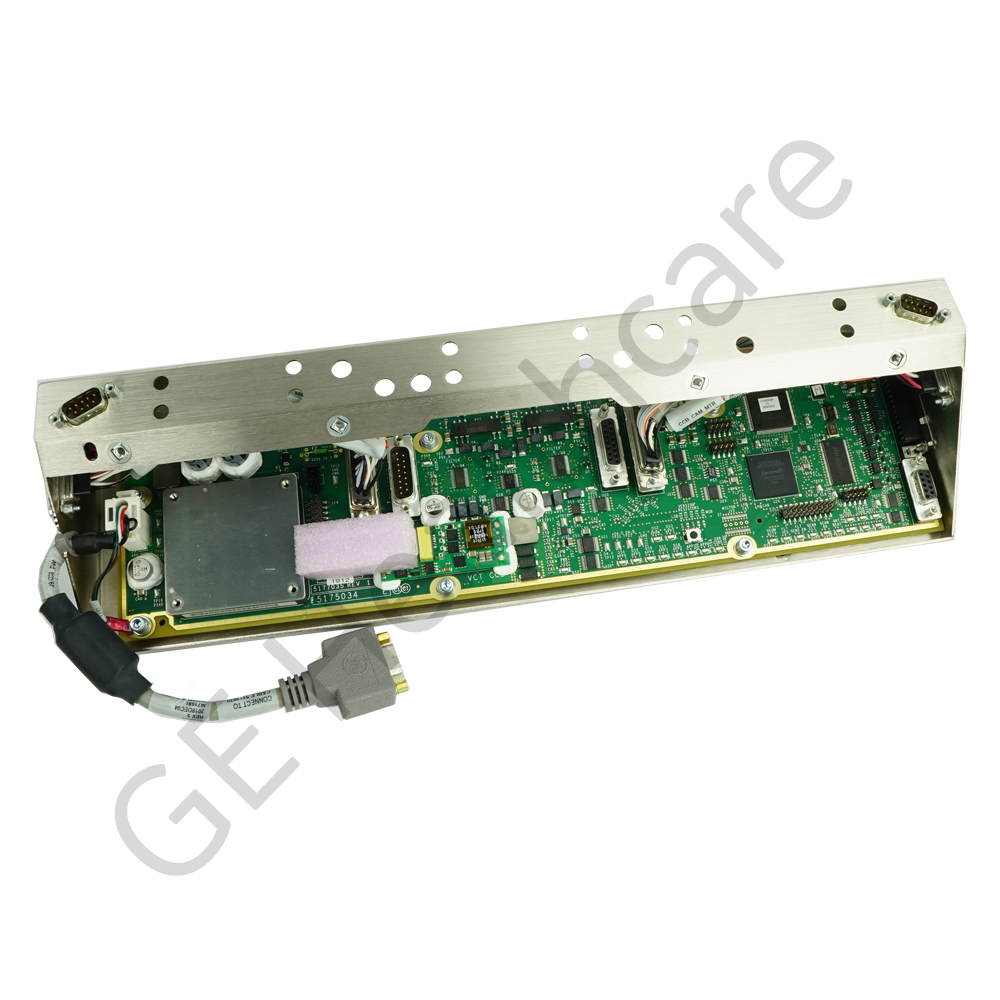

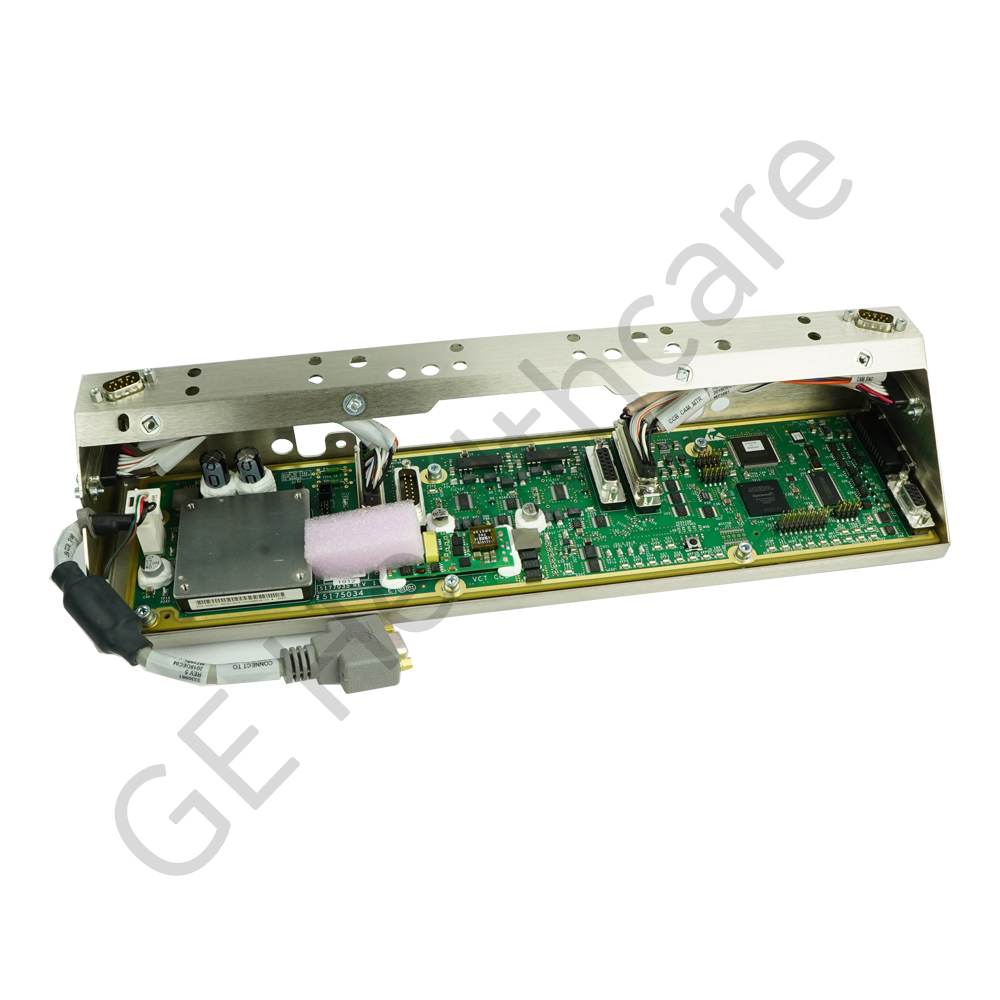

The VCT HD Failsafe - CCB Assembly is used in the failsafe collimator assembly, which is part of the Computed Tomography (CT) system. It is attached to the top side of the base collimator assembly using provided mounting hardware. It consists of the chassis failsafe CCB, VCT CCB PWA, cable harness CCB 48VDC power cable, cable harness CCB to CAM motor and encoder harness, cushioned cable clamp and mounting hardware. The hardware includes fasteners screw, flat washer and curved lock spring washers. The VCT CCB Printed Wiring Assembly (PWA) is comprised of the following components; resistor, capacitor, inductor, IC's, semiconductor diode, transistor, fuse, Opto-coupler, LED, tactile switch, oscillator, surface mount pin strip header, line driver buffer, regulator, memory SDRAM, temperature sensor, DC-DC power supply, linear stepper motor driver switch and connectors. All parts of the assembly are manufactured using high precision techniques which help to achieve a very good surface finish as well as good product consistency. The high dimensional accuracy ensures a perfect fit of the chassis as per the requirement. This PWA is a multilayer with Electroless Nickel Immersion Gold (ENIG) finish. This board finish ensures solderability and to protects the exposed copper circuitry. The mounting hardware screw and washer are made of steel with zinc plating, which provides good corrosion resistance.
Equivalent Item(s):
Below is more information on the equivalent item(s). Items without a hyperlink are listed for reference only and are not available for purchase online.
| Equivalent Item(s) | Item Details |
|---|---|
| 5123185 | |
| 5129998-2 | |
| 5335448 | 5335448 |
